In electronics design, achieving high current gain from a single transistor stage often falls short of what demanding applications require. Whether you’re driving a relay, amplifying a weak sensor signal, or controlling a motor, the limitations of a single bipolar junction transistor can quickly become a bottleneck. That’s where the darlington configuration of transistor steps in as an elegant and widely adopted solution.
The Darlington pair — named after Sidney Darlington, who patented the arrangement in 1953 — connects two transistors in cascade so that the combined current gain far exceeds what either device could deliver alone. The result is a two-transistor stage that behaves like a single, extremely high-gain transistor with a unified base, collector, and emitter terminal. For engineers working with automation accessories, motor controllers, and signal amplification circuits, understanding this configuration is fundamental to designing reliable, efficient systems.
This guide walks through the working principles, key electrical characteristics, practical applications, and component selection considerations for the Darlington transistor configuration — giving you the knowledge to apply it confidently in your next project.
What Is the Darlington Configuration of Transistor?
The darlington configuration of transistor is a compound semiconductor arrangement where two bipolar junction transistors (BJTs) are connected so that the emitter of the first transistor drives the base of the second. Both collectors are tied together to share the same collector terminal. The base of the first transistor becomes the input, and the emitter of the second transistor becomes the output — giving the entire pair a single base, collector, and emitter, just like a standard transistor.
What makes this arrangement powerful is the way current gain multiplies through the two stages. If the first transistor has a current gain (hFE) of 100 and the second also has a gain of 100, the combined gain of the pair approaches 10,000. In practice, gains typically range from a few hundred to several thousand, depending on the specific devices used. This extraordinary sensitivity means the circuit can respond to very small input currents — even those produced by microcontrollers, sensors, or logic gates — and translate them into large output currents capable of driving motors, lamps, or other heavy loads.

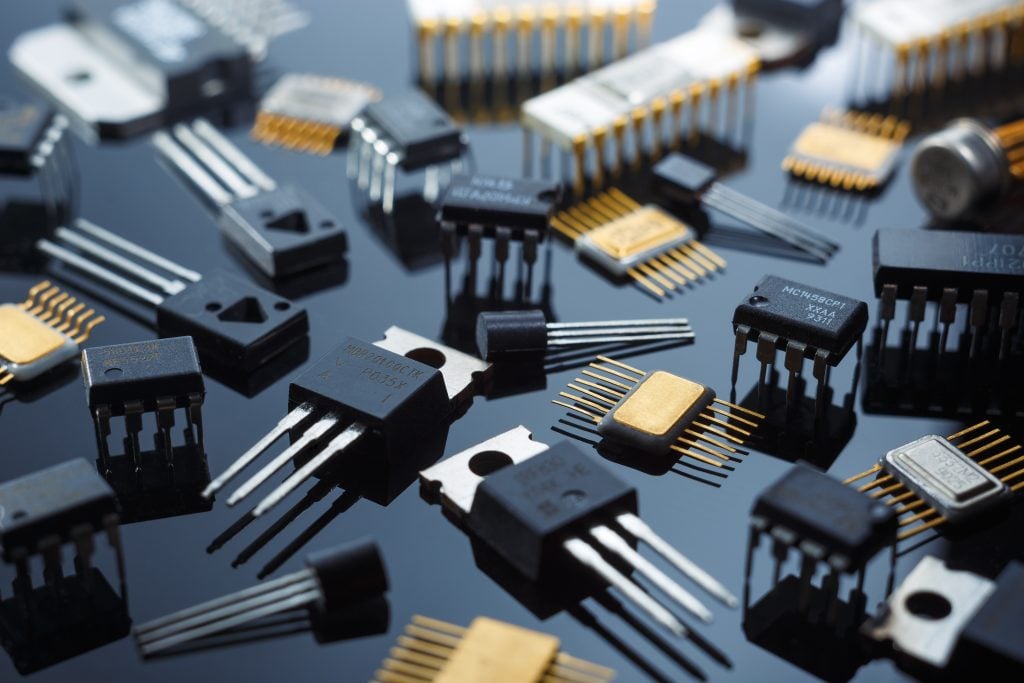

Darlington transistors are available both as discrete pairs built from individual components and as monolithic integrated packages where both transistors are fabricated on a single silicon die. The integrated version, often housed in familiar packages like TO-92, TO-220, or TO-126, delivers consistent matching between the two transistor stages and simplifies board layout significantly.
How the Darlington Pair Works: Core Principles
To use the Darlington configuration effectively, it helps to understand what happens electrically inside the pair. The behavior differs in a few important ways from a standard single transistor, and these differences shape how you design and bias the circuit.
Current Gain Multiplication
The defining characteristic of the darlington configuration of transistor is its multiplicative current gain. When a small base current IB flows into the first transistor (Q1), Q1 amplifies it by its own hFE to produce a collector current. That collector current, combined with the emitter current of Q1, drives the base of the second transistor (Q2). Q2 then amplifies this current by its own hFE a second time. The overall gain of the pair is approximately hFE1 × hFE2 + hFE1 + hFE2, which for practical purposes simplifies to hFE1 × hFE2 when both gains are reasonably large.
This makes the Darlington pair ideal for interfacing digital logic circuits — where output currents are typically in the microampere to low milliampere range — with power loads that demand hundreds of milliamps or even several amperes. A single logic output pin from a microcontroller can reliably switch a relay coil or control a small DC motor without any intermediate driver stage, reducing BOM complexity and board area at the same time.
Input Impedance and Saturation Voltage
Because the input signal only needs to drive the base of the first transistor, and that transistor’s emitter current drives the second transistor’s base rather than a heavier external load, the overall input impedance of the Darlington pair is very high. This is beneficial in sensor interfacing applications, where loading the signal source must be minimized to preserve accuracy and avoid distorting the measured value.
However, the Darlington configuration carries a notable trade-off: the collector-emitter saturation voltage (VCE(sat)) is higher than that of a single transistor. A standard BJT in saturation might exhibit a VCE(sat) of around 0.2V, but a Darlington pair requires approximately 0.7 to 1.0V across the collector-emitter junction when fully saturated. This is because the emitter of Q1 sits one diode drop above the emitter of Q2, so VCE(sat) of the pair equals VBE of Q2 plus VCE(sat) of Q1. For battery-powered designs or high-efficiency switching circuits, this extra voltage drop must be factored into the power budget from the start.
Turn-off speed is also slower than a single transistor because the stored charge in Q1 must be removed before Q2 can switch off. For applications involving higher-frequency switching, placing a resistor between the base and emitter of Q2 helps discharge this charge faster, improving switching speed at the cost of a modest reduction in overall gain.
Common Darlington Transistor Applications
The Darlington pair’s combination of high gain, high input impedance, and ability to control large currents from small inputs makes it a versatile building block across many fields of electronics, from consumer devices to industrial automation systems.
Motor Driver and Relay Control Circuits
One of the most widespread uses of the darlington pair amplifier is in motor driver and relay control circuits. DC motors, stepper motors, and solenoids all present inductive loads that require sustained current — often well beyond what a microcontroller or logic IC can supply directly. A Darlington transistor placed between the controller output and the load allows the logic signal to switch large currents cleanly and reliably without stressing the digital output.
Integrated Darlington arrays, such as the ULN2003 or ULN2803, extend this concept by packaging seven or eight Darlington pairs in a single IC, each with built-in flyback diodes to clamp the voltage spikes generated when inductive loads switch off. These arrays are a staple in relay driver boards, stepper motor controllers, and PLC output modules throughout the automation accessories industry, offering a compact and cost-effective path from logic-level signals to real-world actuation.
Audio Amplifiers and Sensor Interfaces
In audio amplifier design, the Darlington configuration appears in output stages where high current delivery to loudspeakers is essential. The high input impedance of the pair allows it to be driven directly from voltage amplifier stages without loading them down, preserving signal integrity across the full amplifier chain and reducing harmonic distortion caused by stage interactions.
Darlington transistors are equally useful in touch sensor circuits, where the exceptionally high gain allows the tiny current conducted by a human finger to trigger a reliable switching action. Capacitive and resistive touch interfaces in industrial control panels, security systems, and consumer electronics frequently rely on this property. Paired with thermistors, Darlington stages convert the small resistance changes from a temperature sensor into clear switching signals for monitoring and protection circuits — a common requirement in power supplies, motor controllers, and thermal management systems.
Selecting the Right Darlington Transistor for Your Circuit
Choosing the correct Darlington transistor for a given application means matching several key electrical parameters to your circuit’s requirements. Getting these right from the outset prevents thermal problems, unreliable switching behavior, and premature device failure in the field.
The collector current rating (IC) must exceed the maximum load current the circuit will draw, with a margin of at least 20 to 30 percent to account for component tolerances and transient conditions. The collector-emitter voltage rating (VCEO) must comfortably exceed the supply voltage plus any inductive spikes the load may generate — for relay or motor loads, choosing a device rated well above the nominal supply voltage is standard practice. The power dissipation rating (PD) determines how much heat the transistor can handle continuously and is tightly linked to the package type and how effectively the device is thermally coupled to the PCB copper or an external heatsink.
For automation accessory applications involving motor control or relay switching, NPN Darlington transistors in TO-220 or TO-126 packages offer a strong balance of power handling capability and ease of heatsinking. For logic-level interfacing and sensor circuits where board space is at a premium, smaller packages such as SOT-23 or TO-92 Darlington devices are more appropriate. When an application demands multiple independent channels — as in stepper motor control or multi-channel relay boards — Darlington array ICs reduce component count, minimize routing complexity, and often include integrated protection diodes that would otherwise need to be added externally.
Utsource stocks a broad range of Darlington transistors and array ICs covering a wide span of voltage, current, and package options, making it straightforward to source the right component for both early-stage prototyping and higher-volume production builds.
Advantages and Limitations of the Darlington Configuration
Like any circuit topology, the Darlington configuration brings a defined set of trade-offs. Understanding both sides helps you decide when it is the right tool for the job and when an alternative approach — such as a MOSFET or IGBT — might serve better.
The primary advantage is exceptional current gain achieved with minimal circuit complexity. A single Darlington transistor or array IC can replace what would otherwise require multiple discrete transistors, biasing resistors, and interstage coupling components. The high input impedance simplifies interfacing with digital outputs and weak signal sources without adding buffer stages. Integrated Darlington packages improve consistency across production volumes by providing matched transistor pairs in a thermally optimized die, reducing variation between individual units.
The limitations center on elevated saturation voltage and slower switching speed compared to a single transistor or a MOSFET. For high-efficiency DC-DC converters or fast PWM motor drives operating above a few kilohertz, a MOSFET or IGBT will typically deliver better efficiency and faster transient response. The higher VCE(sat) also makes the Darlington a poor fit for very low-voltage applications where a 0.7V drop represents a significant fraction of the available supply rail.
For medium-frequency switching, relay driving, lamp control, and sensor interfacing — all routine tasks in automation and industrial electronics — the Darlington configuration remains one of the most reliable and cost-effective solutions available. Its simplicity, robustness, wide availability across package types, and straightforward biasing requirements make it a practical first choice when high current gain is the primary design requirement.
Putting the Darlington Configuration to Work in Your Design
The darlington configuration of transistor has remained a cornerstone of power electronics and amplifier design for decades precisely because it solves a real engineering problem with elegant simplicity. By cascading two transistors to multiply their individual gains, the Darlington pair delivers the high current drive and input sensitivity that single-transistor circuits cannot match — all within a compact, easy-to-source package that integrates smoothly into both discrete and array-based designs.
For engineers working on motor controllers, relay drivers, sensor interfaces, and automation accessories, the key is matching the Darlington transistor’s specifications to the load requirements, budgeting correctly for the higher saturation voltage, and selecting an appropriate package for the thermal demands of the application. Placing a base-emitter resistor on the output transistor where switching speed matters, and choosing an integrated array where multiple channels are needed, rounds out the practical toolkit for using this configuration effectively.
With these considerations in place, the Darlington pair consistently delivers reliable, high-gain switching performance across a wide range of operating conditions — from delicate sensor inputs to robust industrial load switching — making it one of the most enduring and practical transistor configurations in the engineer’s toolbox.
